5.7 Search (Blackbox)

Intent/Responsibility

The module determines the optimal move for a position under certain conditions. In the game of chess an optimal move always exists, theoretically. The high number of possible moves and the resulting incredible mass of game situations to consider makes it impossible to determine it in practice. Common algorithms like the Minimax therefore explore the “game tree” only up to a certain depth.

Interfaces

The module provides its functionality via the Java interface
org.dokchess.engine.search.Search.

Class org.dokchess.engine.search.MinimaxAlgorithm implements the interface with the Minimax algorithm. The class MinimaxParallelSearch uses the algorithm and implements the same interface Search. It examines several subtrees concurrently; if it finds a better move the caller receives a message onNext via the observer pattern. The search indicates the completion of its work with the message onComplete.

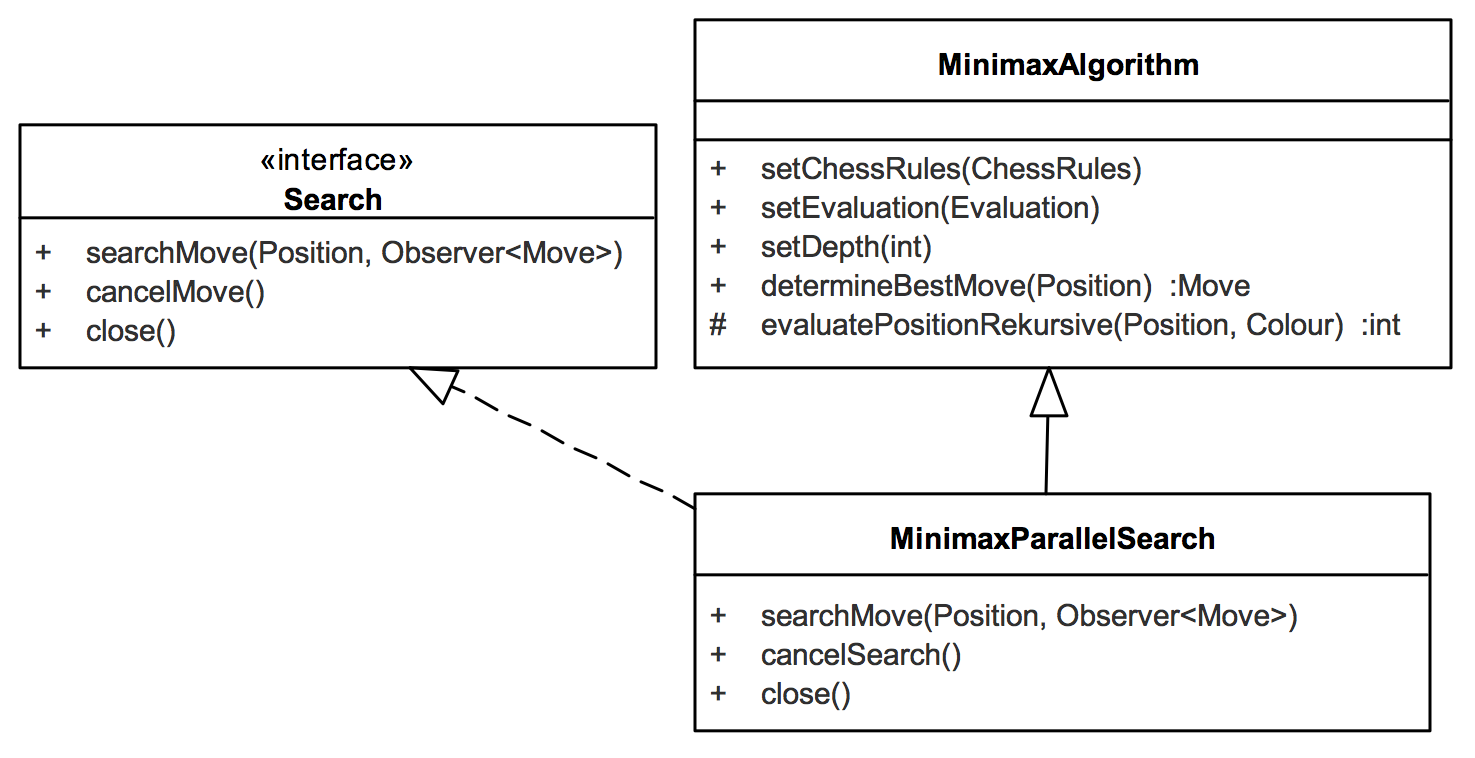

Interface Search, classes MinimaxAlgorithm and MinimaxParallelSearch

Fig.: Interface Search, classes MinimaxAlgorithm and MinimaxParallelSearch

Method Short description
searchMove Starts a search for a move on the specified position. Returns gradually better moves as events on the passed observer. The end of the search (no better move found) is also signaled to the observer.
cancelSearch Cancels the current search.
close Closes the search completely. No moves may be determined after calling this method.

Table: Methoden der Schnittstelle Suche

Method Short description
setEvaluation Set the evaluation function on which the positions are rated when the maximum search depth is reached. → Module Evaluation (Black Box)
setChessRules Sets an implementation of the chess rules via dependency injection, → Subsystem Rules (Black Box)
setDepth Set the maximum search depth in half moves. That means at 4 each player moves twice.
determineBestMove Determines the optimal move according to minimax for the position passed and given evaluation at fixed search depth. The method blocks and is deterministic.

Table: Methods of the class MinimaxAlgorithm

Files

The implementation is located below the packages
org.dokchess.engine.search…
